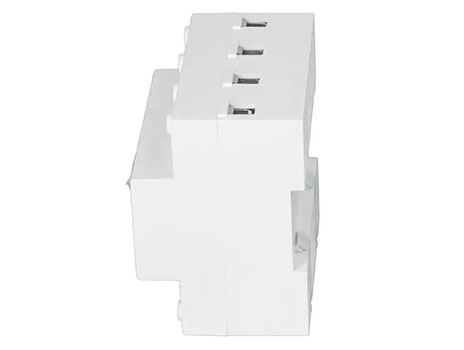

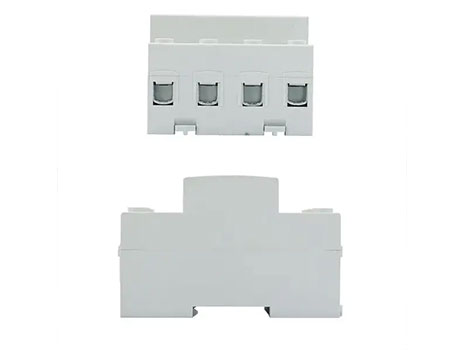

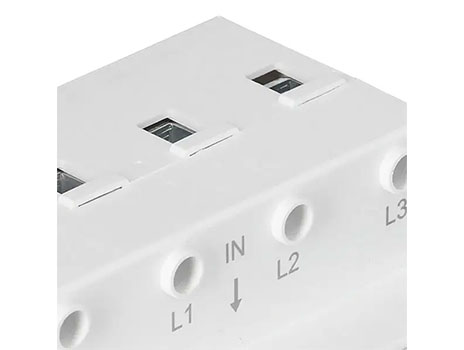

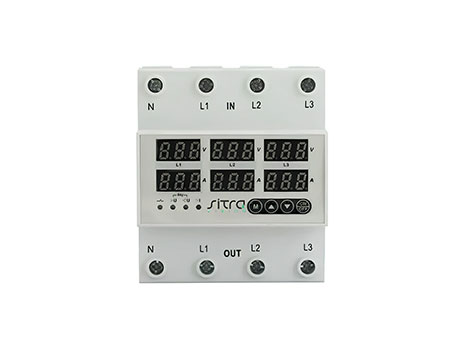

Three-Phase Voltage and Current Protector Model SO/RCVB3000
The SO/RCVB3000 three-phase voltage and current protector is an advanced solution for protecting sensitive equipment in industrial, commercial, and office environments. This device, with its precise voltage and current adjustment capabilities, quick and intelligent operation, offers reliable and efficient protection for all your electrical devices.
One of the standout features of this protector is its easy installation on a DIN rail, which speeds up the installation process. Additionally, this device accurately monitors the voltage and current status of each phase, and in case of issues such as overvoltage, undervoltage, phase imbalance, or incorrect phase sequence, it quickly cuts off the power. Once the issue is resolved, power is restored to keep your devices safe.
Technical Specifications of the SO/RCVB3000 Three-Phase Voltage and Current Protector
| Feature | Description |
|---|---|
| Model | SO/RCVB3000 |
| Operating Input Voltage | 230V AC Three-phase, 50/60Hz |
| Adjustable Current | Up to 63 Amps |
| Overvoltage Cut-Off | Adjustable between 240V to 300V |
| Undervoltage Cut-Off | Adjustable between 140V to 210V |
| Delay Time | Adjustable between 1 to 600 seconds |
| Digital Display | Displays voltage and current of each phase (LED or LCD) |
| Additional Protections | Phase imbalance, incorrect phase sequence, neutral cut-off |
| Easy Installation | Installable on 35mm DIN rail |
| Lifespan | Approximately 100,000 electrical and mechanical cycles |
