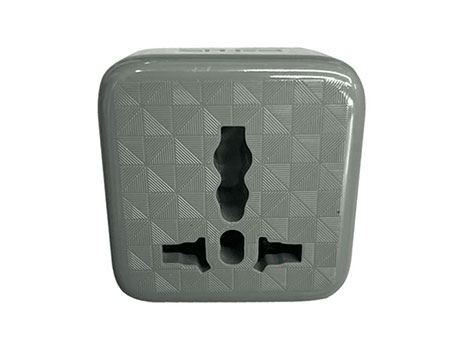

Sitra SO-SI14 Timer Switch and Protector Converter
The Sitra SO-SI14 Timer Switch and Protector Converter is an advanced and multifunctional device designed to protect electronic devices and sensitive equipment from power fluctuations. This product simultaneously provides three practical features: a surge protector, a plug converter, and a timer cut-off.
Comprehensive protection against voltage fluctuations, short circuits in power lines, and phase-to-phase electricity ensures that the devices connected to this converter remain safe. Its universal output also allows you to connect various plug types, including common plugs used in Iran.
The device’s adjustable three-timer cut-off feature allows you to manage the power-on time and prevent overcharging of batteries. This feature is especially useful for rechargeable devices that are sensitive to overcharging.
Technical Specifications of the Sitra SO-SI14 Timer Switch and Protector Converter
| Feature |
Description |
| Model |
SO-SI14 |
| Output Layout |
One universal socket |
| Output Power |
2450W MAX |
| Nominal Current |
10 Amps |
| Maximum Input Voltage |
400VAC |
| Voltage Protection Range |
170-245VAC ~ 50/60Hz |
| Power Consumption |
0.6W (Typical @ 220V 50Hz) |
| Protection Systems |
Initial power-on delay, error reset delay, zero-crossing connection, out-of-range voltage, out-of-range frequency |
| Response Speed |
25ms / ZVS Switching |
| Initial Power-On Delay |
5 seconds |
| Error Reset Delay |
50 seconds |
| Timer Cut-Off |
3:00, 1:30, 0:45 |
| Plastic Material |
Engineered polycarbonate alloy |
| Flame Resistance |
UL 94 V-1 Flame-Retardant |
| Connector Material |
Copper and brass alloy |
| Dimensions |
52x52x65mm |
| Weight |
65±5g |
Description
Key Features of the Sitra SO-SI14 Timer Switch and Protector Converter
Multiple Protection
This device combines three protective features: surge protector, plug converter, and timer cut-off, providing comprehensive protection for your electrical equipment. These features prevent power surges, short circuits, voltage drops and spikes, and other electrical issues.
Adjustable Three-Timer Cut-Off
The timer of this device has three adjustable time settings (0:45, 1:30, and 3:00), preventing overcharging of battery-powered devices. This feature is particularly useful for rechargeable devices that are sensitive to overcharging.
Universal Connection
The universal output of this device supports various plug types, including common plugs used in Iran. This feature makes the device versatile for use in different environments without the need to purchase a separate converter.
Heat and Flame-Resistant Design
The engineered polycarbonate body of this device is flame-resistant and has a UL 94 V-1 certification. This feature enhances the safety of the device and increases its durability.
Applications of the Sitra SO-SI14 Timer Switch and Protector Converter
The Sitra SO-SI14 timer switch and protector converter is designed for use in various environments. Some of its applications include:
Industrial: Ideal for protecting electric motors, pumps, generators, compressors.
Commercial and Office: Used for servers, data centers, and sensitive office devices.
Sensitive Systems: Protects banks, telecommunications centers, hospitals, and other equipment sensitive to power fluctuations.
Benefits of Using the SO-SI14
Complete Device Protection: Protects devices from power surges, short circuits, and phase-to-phase electricity issues.
Battery Charge Management: The adjustable cut-off timer prevents overcharging of batteries.
Universal Connection: Supports various common plug types.
Durable Design: Flame and heat-resistant body with long lifespan.
Easy Installation: Simple and quick installation without the need for technical expertise.
Conclusion
The Sitra SO-SI14 Timer Switch and Protector Converter is an advanced device designed to protect your electronic equipment from power fluctuations. With features such as the three-timer cut-off, universal output, and flame-resistant body, this device provides complete protection for all devices connected to it, safeguarding them from the risks of power surges.
