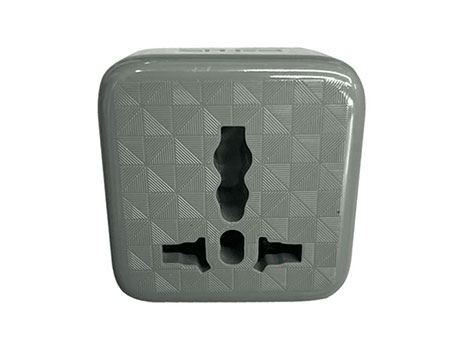

Sitra SO-SI14 Timer Switch and Protector Converter
The Sitra SO-SI14 Timer Switch and Protector Converter is an advanced and multifunctional device designed to protect electronic devices and sensitive equipment from power fluctuations. This product simultaneously provides three practical features: a surge protector, a plug converter, and a timer cut-off.
Comprehensive protection against voltage fluctuations, short circuits in power lines, and phase-to-phase electricity ensures that the devices connected to this converter remain safe. Its universal output also allows you to connect various plug types, including common plugs used in Iran.
The device’s adjustable three-timer cut-off feature allows you to manage the power-on time and prevent overcharging of batteries. This feature is especially useful for rechargeable devices that are sensitive to overcharging.
Technical Specifications of the Sitra SO-SI14 Timer Switch and Protector Converter
| Feature | Description |
|---|---|
| Model | SO-SI14 |
| Output Layout | One universal socket |
| Output Power | 2450W MAX |
| Nominal Current | 10 Amps |
| Maximum Input Voltage | 400VAC |
| Voltage Protection Range | 170-245VAC ~ 50/60Hz |
| Power Consumption | 0.6W (Typical @ 220V 50Hz) |
| Protection Systems | Initial power-on delay, error reset delay, zero-crossing connection, out-of-range voltage, out-of-range frequency |
| Response Speed | 25ms / ZVS Switching |
| Initial Power-On Delay | 5 seconds |
| Error Reset Delay | 50 seconds |
| Timer Cut-Off | 3:00, 1:30, 0:45 |
| Plastic Material | Engineered polycarbonate alloy |
| Flame Resistance | UL 94 V-1 Flame-Retardant |
| Connector Material | Copper and brass alloy |
| Dimensions | 52x52x65mm |
| Weight | 65±5g |
